Aurora YF-LV-P1E Series 6.6kW & 7.2kW 48V Hybrid Solar Inverter
Subtitle: High-Performance Low-Voltage Hybrid Inverter with Dual MPPT, 13.2kW PV Capacity & IP66 Protection
About this product
The Aurora YF-LV-P1E Series is a high-performance 48V low-voltage hybrid solar inverter designed for homes, offices, shops, and small commercial installations requiring reliable solar generation, battery storage, and backup power.

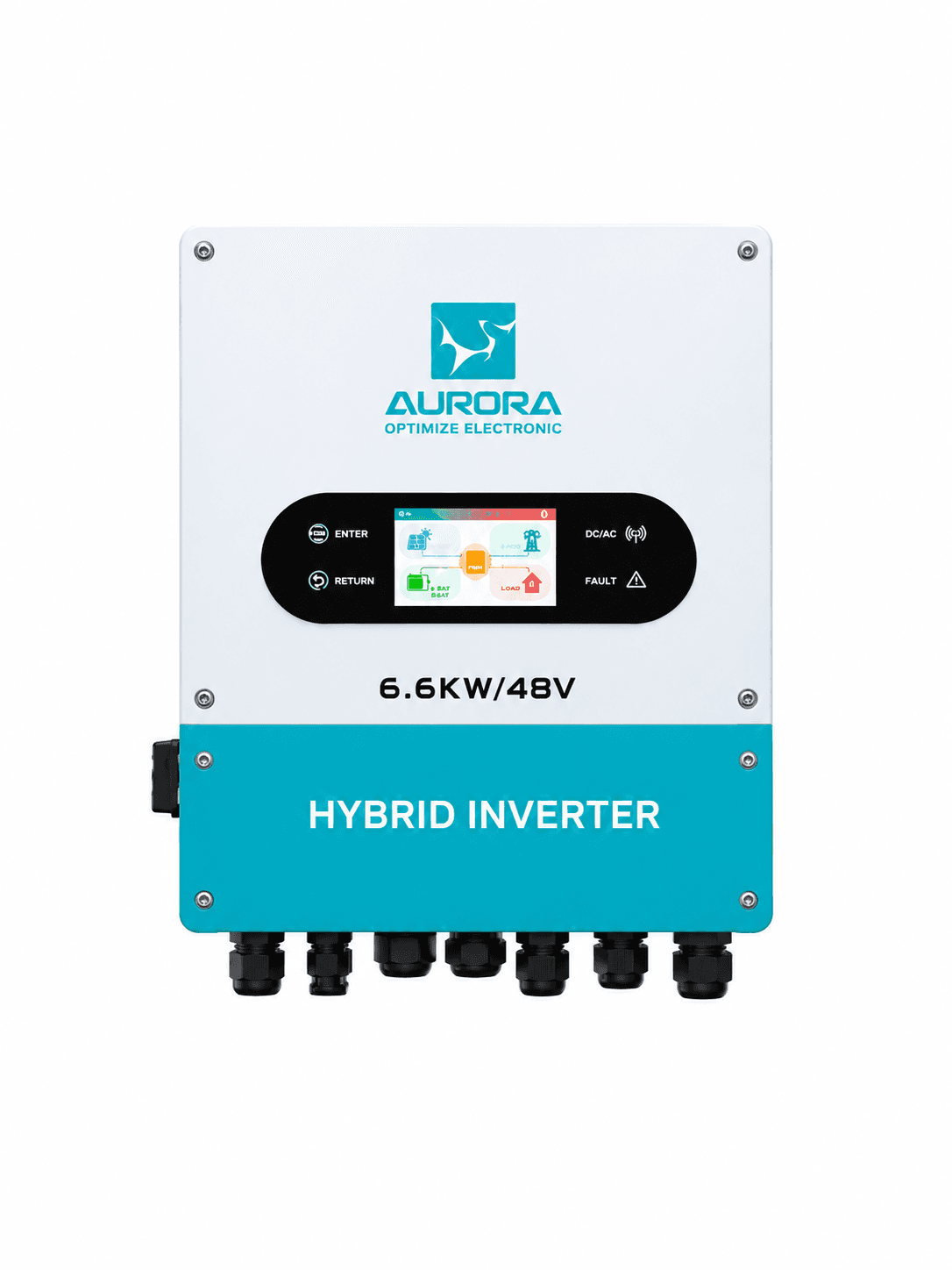

The series includes the YF-LV-P1E-6648 (6.6kW) and YF-LV-P1E-7248 (7.2kW) models. Both feature dual MPPT solar inputs, support lithium and lead-acid batteries, and can accept up to 13,200W of PV input. The inverter shown in the supplied image is the 6.6kW / 48V model.
With an IP66-rated enclosure, touchscreen display, high battery charging/discharging capability, and support for parallel operation, the series is suitable for demanding residential and small-business solar systems.
Key Features
6.6kW / 7.2kW Output Options: Choose according to your power requirements
48V Battery System: Designed for efficient low-voltage energy storage
Dual MPPT: Two independent MPPT channels for improved solar harvesting
Up to 13.2kW PV Input: Allows substantial solar-panel capacity
High Battery Current: Up to 135A on the 6.6kW model and 140A on the 7.2kW model
Lithium & Lead-Acid Compatible: Supports modern LiFePO4 as well as traditional battery systems
IP66 Protection: Dust-tight and highly resistant to water ingress
Colour Touchscreen: Convenient monitoring and system control
Parallel Operation: Applicable models can be expanded by connecting multiple units
Generator Integration: Supports generator input for additional backup flexibility
Single-Phase Output: Suitable for typical residential and small-business applications
Advanced Protection: Includes multiple electrical protection and monitoring functions
Performance (Real Use Cases)
The Aurora YF-LV-P1E series can be used to power a wide range of loads, including:
Refrigerators and freezers
Air conditioners, subject to appropriate system sizing
TVs and entertainment systems
Fans and lighting
Computers and networking equipment
Washing machines
Water pumps
Office equipment
Shops and small business equipment
Other household and commercial appliances
YF-LV-P1E-6648:
6,600W rated output | 48V battery | 13,200W maximum PV input | 135A maximum charge/discharge current
YF-LV-P1E-7248:
7,200W rated output | 48V battery | 13,200W maximum PV input | 140A maximum charge/discharge current
Durability & Reliability
IP66 Protection: Suitable for demanding installation environments and outdoor-capable applications
High PV Capacity: Supports substantial solar arrays for greater energy generation
High Battery Charging Capability: Designed for efficient battery replenishment
Multiple Protection Functions: Includes protection against conditions such as overcurrent, overvoltage, short circuit and thermal faults
Wide Operating Temperature Range: Datasheet specifies operation from approximately -40°C to +60°C, with derating above 45°C
Expandable System: Parallel operation provides an option for future system expansion
Applications
Home solar power systems
Residential backup power
Small and medium-sized businesses
Offices and shops
Solar energy storage systems
Off-grid installations
Hybrid solar installations
Generator-solar hybrid systems
Reducing dependence on petrol/diesel generators
Commercial backup power
Available Variants & Prices
ModelRated OutputBatteryMax PV InputMax Charge/DischargeCurrent Nigerian Listed PriceYF-LV-P1E-66486.6kW48V13.2kW135A₦745,000–₦894,000 YF-LV-P1E-72487.2kW48V13.2kW140A₦785,000–₦918,000
Suggested listing prices based on the lower current Nigerian listings:
YF-LV-P1E-6648 — ₦745,000
YF-LV-P1E-7248 — ₦785,000
Prices can vary between suppliers and with stock availability, so confirming the price before publishing is advisable.
Pack Options
Single inverter
Bulk supply for solar installers
Wholesale supply for resellers
Distributor/project quantities
Ordering & Availability
YF-LV-P1E-6648 — ₦745,000
YF-LV-P1E-7248 — ₦785,000
Send an order enquiry on WhatsApp to confirm the exact model, current stock, final price, and delivery options.
Fast delivery
Dispatched in 1–3 business days to your pickup point or door.
Distributor-backed warranty
Products with manufacturer warranty are backed by our authorised distributors — we stand behind every unit.
Tracked & secure dispatch
Every shipment is tracked end-to-end via our dispatch service — your goods stay protected in transit.
Product Information
Brand: Aurora
Series: YF-LV-P1E
Type: Low-Voltage Hybrid Solar Inverter
Models: YF-LV-P1E-6648 / YF-LV-P1E-7248
Output: 6.6kW / 7.2kW
Battery Voltage: 48V nominal
Battery Type: Lithium / Lead-acid
Maximum PV Input: 13,200W
MPPT Channels: 2
Maximum PV Voltage: 500V DC
PV Input Current: 20A + 20A
Battery Charge/Discharge: 135A / 140A depending on model
AC Voltage: 220/230V
Frequency: 50Hz / 60Hz
Protection Rating: IP66
Parallel Operation: Supported on applicable configurations
Dimensions: 338 × 480 × 205mm
Weight: Approximately 13kg
Country of Origin: China
Note: The specifications above are based on the supplied datasheet and current product listings; confirm the exact model specification before installation or purchase.
