Aurora YF-LFP-HVS High-Voltage LiFePO4 ESS – 144kWh/224kWh

About This Product

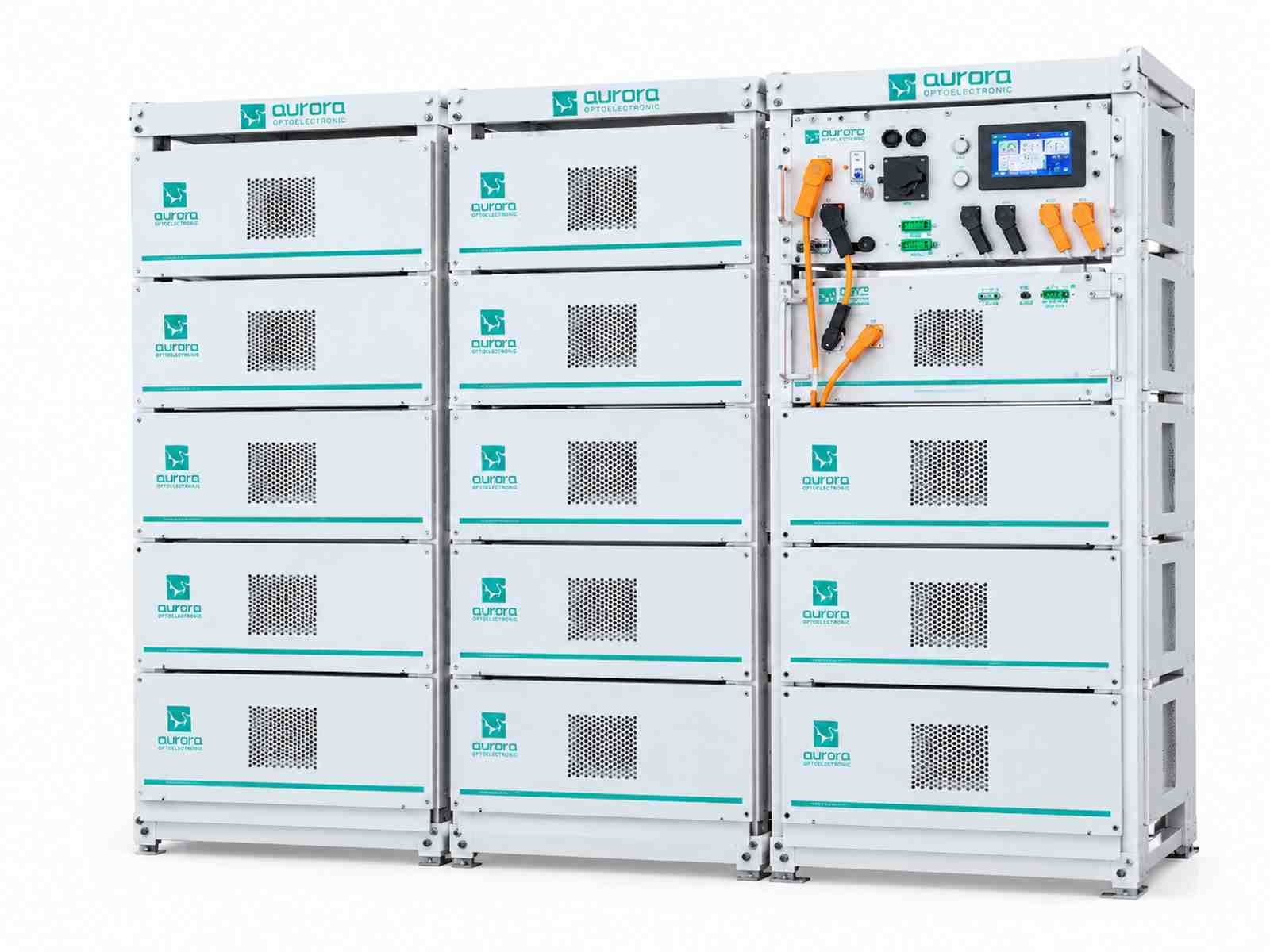

The Aurora YF-LFP-HVS Series High-Voltage Stacking All-in-One ESS is a modular energy storage system designed for reliable, scalable energy storage applications. It uses LiFePO4 battery technology with a built-in smart BMS and breaker for battery monitoring and protection. Each battery module provides 16 kWh of energy, with configurations of 9 or 14 modules delivering 144 kWh or 224 kWh of total system energy. The system supports up to 8 units in parallel, allowing scalability up to approximately 1,800 kWh.

Key Features

Battery Type: LiFePO4

Model: YF-LFP-HVS-9 / YF-LFP-HVS-14

Module Energy: 16 kWh

System Energy: 144 kWh / 224 kWh

Module Nominal Voltage: 51.2 V

System Nominal Voltage: 460.8 V / 716.8 V

Module Capacity: 314 Ah

Depth of Discharge (DoD): 90%

Maximum Continuous Charge/Discharge Current: 160 A

Peak Charge/Discharge Current: 190 A (2 seconds)

Cycle Life: ≥8,000 cycles

Scalability: Up to 8 systems in parallel (up to approximately 1,800 kWh)

Display: LCD touchscreen

Communication: CAN

Protection: Built-in smart BMS and breaker

Installation: Rack mounting

Cooling: Natural cooling

Protection Level: IP21

Outdoor/Operating Durability

The system is designed for controlled installation environments and operates within specified temperature conditions:

Charging: 0°C to +50°C

Discharging: -5°C to +50°C

Storage: -10°C to +45°C

Humidity: 20–95%, non-condensing

Warranty: 10 years for the battery system, with BMS warranty stated as 5 years.

Pack Options

Configuration

Battery Modules

Total Energy

System Voltage

YF-LFP-HVS-9

9

144 kWh

460.8 V

YF-LFP-HVS-14

14

224 kWh

716.8 V

Approximate 16 kWh module dimensions: 858 × 565 × 325 mm

Approximate product weight: 117 kg per module/pack.

Wholesale Availability

Available for bulk and wholesale supply, with scalable configurations suitable for residential, commercial and larger energy-storage applications. Contact us for current pricing, quantity requirements and installation specifications.

Storage Instructions

Store the battery system in a dry, well-ventilated environment, within the recommended -10°C to +45°C storage temperature range. Avoid condensation, excessive heat, direct exposure to harsh environmental conditions, and unauthorized handling. Follow the manufacturer's installation and storage guidelines.
