About this product

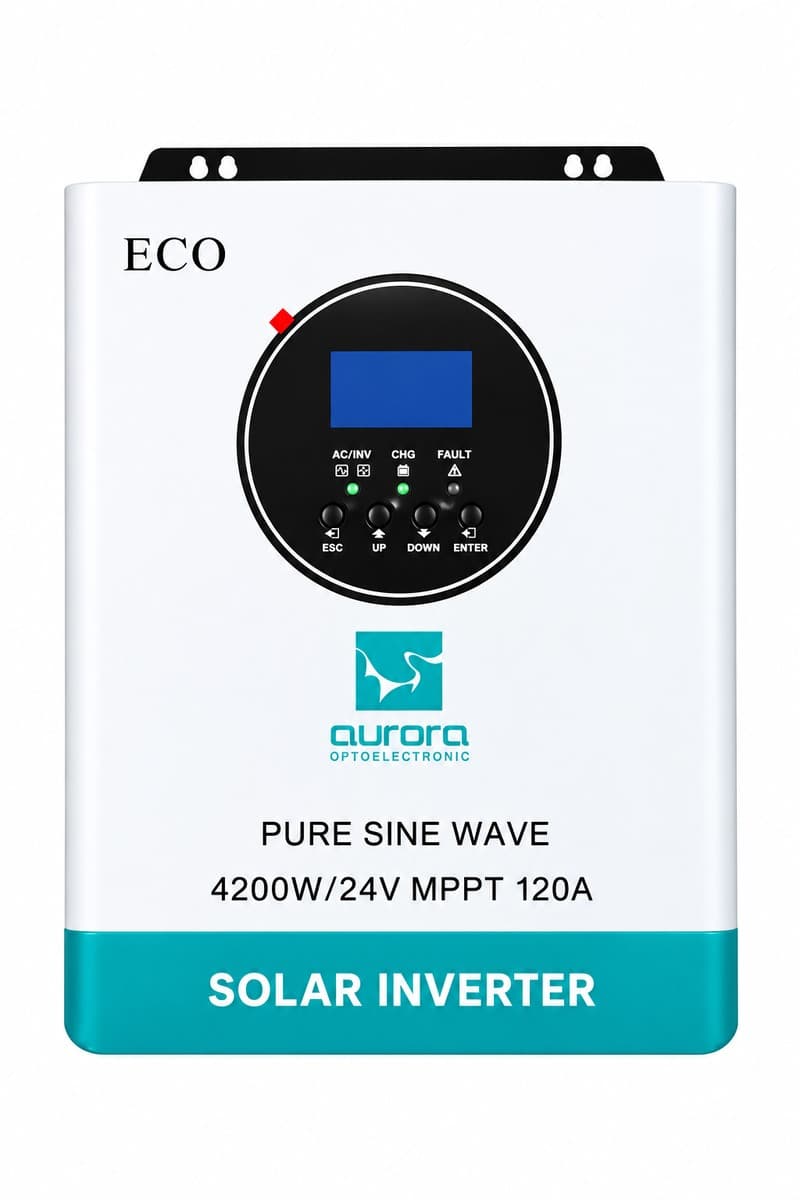

The Aurora YF-FS-HP Series is a range of pure sine wave high-frequency solar inverters designed for residential, office, and commercial backup applications. The series combines inverter, battery charging, and MPPT solar charging functions in one unit.

The range covers different battery configurations from 12V to 48V, with solar PV input capacities from 2kW up to 11kW. Selected models feature dual MPPT, lithium battery BMS communication, Wi-Fi expansion, and high charging currents.

Key Features

• Pure Sine Wave Output: Provides clean and stable power for household appliances and sensitive electronics.

• Built-in MPPT Solar Charger: Maximizes solar energy harvesting from connected PV panels.

• Multiple Battery Voltages: Available in 12V, 24V and 48V configurations.

• High Solar Input: Up to 11kW PV input on the YF-FS-HP-11048-D.

• Dual MPPT: The 11kW model uses dual MPPT solar charging.

• High Charging Current: Up to 150A maximum PV charging current on the 6.2kW and 11kW models.

• Lithium Battery Support: Supports lithium batteries with BMS communication through the expansion interface.

• Wi-Fi Expansion: Compatible models can be equipped with Wi-Fi monitoring.

• Automatic Lithium Battery Restart: Supports automatic restart functionality for compatible lithium battery systems.

• High Efficiency: Up to 98% conversion efficiency is specified on the series datasheet.

• LCD Display: Displays operating mode, load, input and output information.

• Adjustable Switching Time: Suitable for backup applications requiring rapid transfer to battery power.

Available Variants

ModelBatteryInverter OutputMax. PV InputMPPTYF-FS-HP-1612-D12V1,600W2,000W1YF-FS-HP-3024-D24V3,000W3,000W1YF-FS-HP-4224-D24V4,200W5,000W1YF-FS-HP-6248-D48V6,200W6,200W1YF-FS-HP-11048-D48V11,000W11,000W2

Durability & Reliability

• Pure sine wave technology for stable AC power.

• MPPT solar charging for efficient PV utilization.

• Operating temperature: approximately -10°C to +50°C according to the supplied datasheet.

• Operating humidity: 20–95%, non-condensing.

• Storage temperature: approximately -15°C to +60°C.

• Protection: The datasheet lists protection against overload and other operating faults.

• Lithium BMS communication: Supported through the expansion communication interface.

• Product warranty: The supplied datasheet does not specify a warranty period, so warranty terms should be confirmed with the supplier.

Applications

• Residential solar backup

• Homes and apartments

• Offices

• Shops and small businesses

• Solar-powered appliances

• Home entertainment systems

• Refrigerators and freezers

• Lighting and fans

• Computers and sensitive electronics

• Small commercial solar installations

• Larger commercial backup systems using the 6.2kW and 11kW models

Pack Options

• Single inverter

• Bulk supply

• Installer/project quantities

• Wholesale supply

• Complete solar system/project orders

Current / Estimated Prices in Nigeria

I found verified current listings for several of the models:

ModelCapacityPriceYF-FS-HP-1612-D1.6kW / 12V₦237,000YF-FS-HP-3024-D3kW / 24V≈ ₦300,000–₦330,000 estimatedYF-FS-HP-4224-D4.2kW / 24V₦353,000YF-FS-HP-6248-D6.2kW / 48V₦457,000–₦575,000YF-FS-HP-11048-D11kW / 48V₦960,000–₦973,000

The ₦237,000 price for the 1.6kW model and ₦353,000 for the 4.2kW model are current Tegra Nigeria listings, both tax excluded.

For the 6.2kW model, Solar Village currently shows a special price of ₦457,000, while another Nigerian Aurora retailer lists the model at ₦575,000 on sale.

For the 11kW model, Pragmarstore lists the YF-FS-HP-11048-D at ₦960,000, while Solar Village lists it at ₦973,000.

For the 3kW YF-FS-HP-3024-D specifically, I could not verify an exact current listing from a Nigerian seller. Based on comparable 3kW/24V Aurora and other-brand products currently listed in Nigeria, ₦300,000–₦330,000 is a reasonable catalogue estimate rather than a verified Aurora price.

Recommended Catalogue Prices

If you're preparing these for your store, I'd use:

• YF-FS-HP-1612-D — ₦245,000

• YF-FS-HP-3024-D — ₦320,000

• YF-FS-HP-4224-D — ₦353,000

• YF-FS-HP-6248-D — ₦575,000

• YF-FS-HP-11048-D — ₦973,000

These are recommended catalogue prices, with the 1.6kW, 4.2kW, 6.2kW and 11kW figures anchored to current Nigerian listings; the 3kW figure is an estimate.

Wholesale Availability

We offer competitive wholesale pricing for solar installers, contractors, distributors, businesses and bulk buyers. Bulk/project pricing can be negotiated depending on quantity, stock availability and delivery requirements.

Product Information

Brand: Aurora Optoelectronic
Series: YF-FS-HP
Type: High-Frequency Hybrid Solar Inverter
Waveform: Pure Sine Wave
Battery Options: 12V / 24V / 48V
Solar Charging: MPPT
Max. PV Input: Up to 11,000W
Max. PV Voltage: 500V DC
Max. Efficiency: Up to 98%
Display: LCD
Communication: RS232 + expansion interface
Battery BMS: Supported
Wi-Fi: Expansion option
Parallel Function: No parallel function according to the supplied datasheet.
